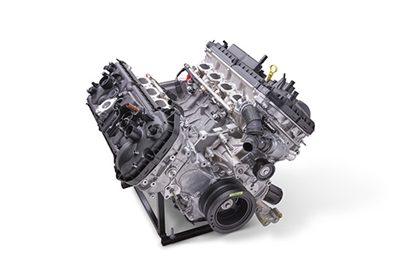

GEN 4 5.0L COYOTE DARK HORSE™ LONG BLOCK (M-6006-M50DH)
GEN 4 5.0L COYOTE DARK HORSEâ„¢ LONG BLOCK (M-6006-M50DH)

Alternative Views:
Our Price: $7,353.75


Availability: Usually Ships in 24 to 48 Hours
Product Code: WR-6006-M50DH
Qty:

Description

This long block assembly is a replacement for your 2024 Mustang Dark Horse™ 5.0L and an upgrade for your 2024 Mustang GT 5.0L. The 2024 Mustang 5.0L DOHC 32-valve V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies and high compression to deliver 500 horsepower in the Dark Horse™.

The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps, thick main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.

  • 12.0:1 Compression ratio
  • Bore 93 mm x Stroke 92.7 mm
  • Hypereutectic aluminum pistons
  • Sintered steel connection rods
  • Forged steel crankshaft
  • Aluminum block that features plasma transferred wire arc spray weld liner coating
  • Longer, 12 mm head bolts for higher clamp load
  • 9.5 qt capacity steel oil pan
***NOTE: Driver side exhaust flange utilizes 5.2L bolt pattern***

The long block assembly does NOT include:
  • Intake manifold/throttle bodies
  • Fuel rails/fuel injectors
  • Water pump pulley
  • Alternator
  • Exhaust manifolds
  • Flywheel/flex plate
  • Engine wiring/PCM
